A3W-X [A02] – Xicato Wallwash
Max. 2000 Lumens
Max. 98 CRI
1:1 Wallwash
3-1/16” [78] Dia. x 7-3/8” [187] Length
A3S [A05] – Very Narrow Spot
Max. 700 Lumens
90+CRI
6° Spot
3-1/16” [78] Dia. x 7” [178] Length
A3P [A04] – Framing Projector
Max. 1800 Lumens
90+CRI
11°, 22°, 33°, 54° Focus Tubes
2-3/8” Dia. [60] x 8-11/16” [221] Length
Gobo Accessories

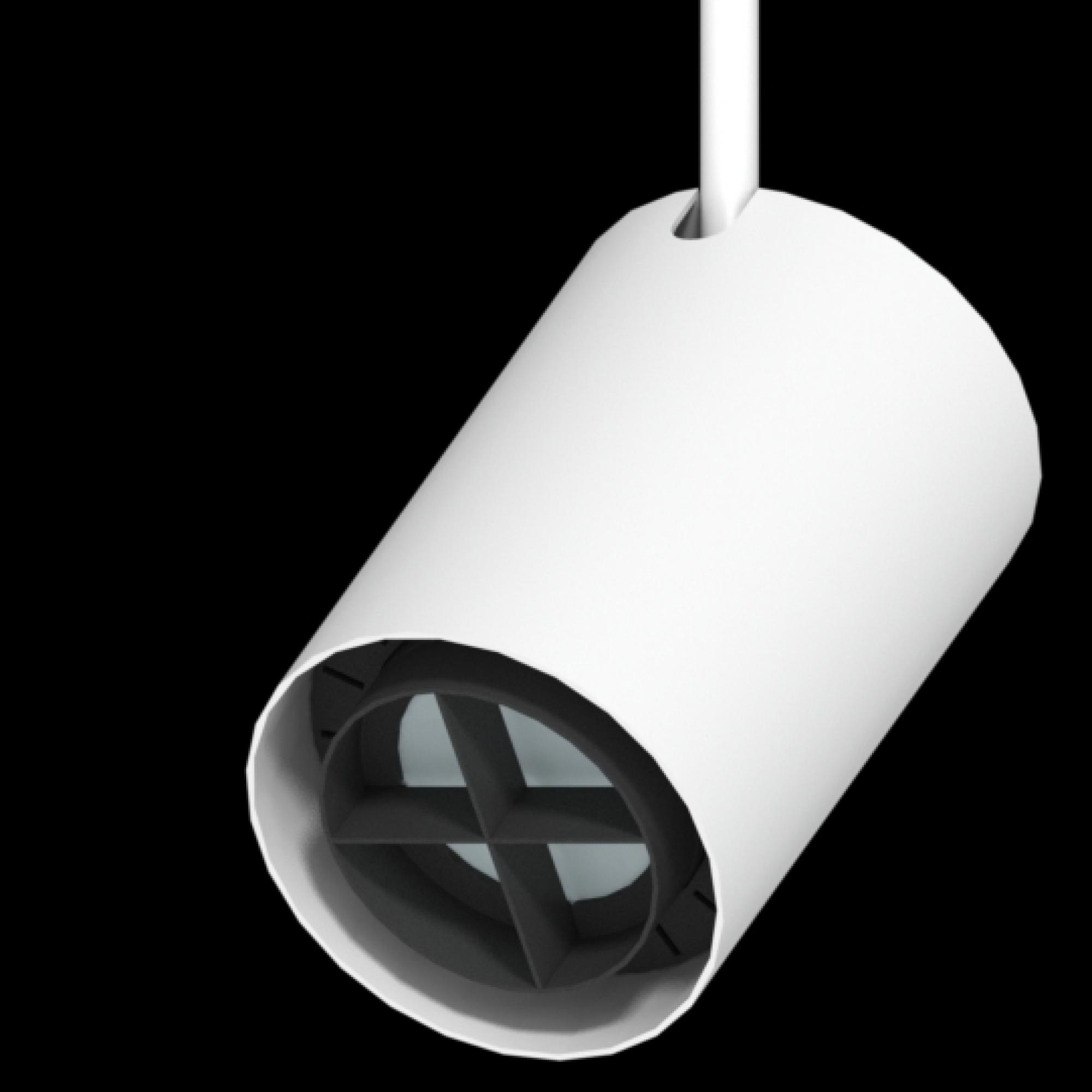

C4O [M63] – PAR30 Object
PAR-30 LED Replacement Lamp
30 Watt Max.
4-1/2” [114] Dia. x 8-15/16” [226] Length

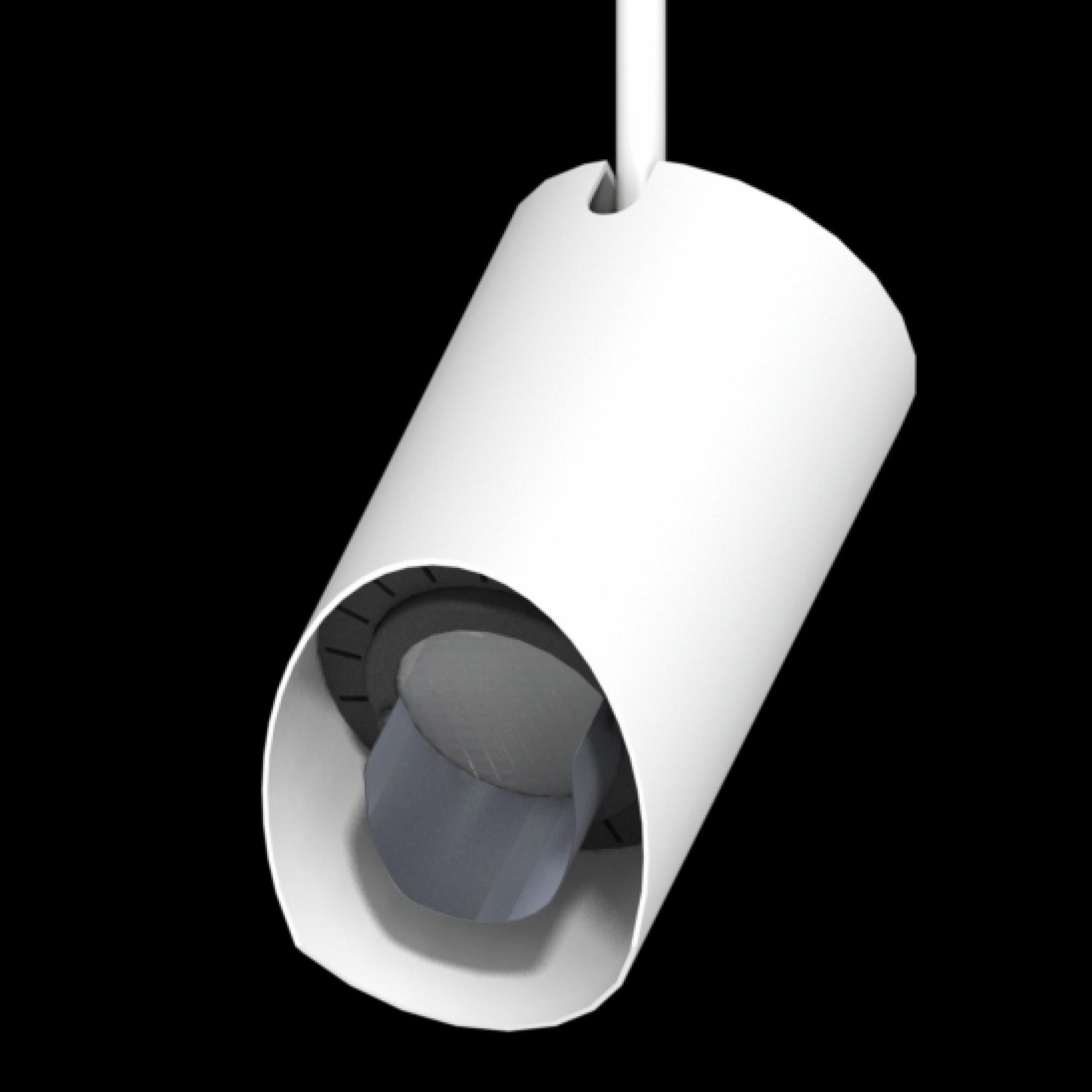

C4W [M64] – PAR30 Wallwash
PAR-30 LED Replacement Lamp
30 Watt Max.
4-1/2” [114] Dia. x 10-1/8” [258] Length
C5O-SW [M97] – Static White Object
Max. 6000 Lumens
90+CRI
12°, 20°, 40° Fixed Optic
5-1/2” [140] Dia. x 12-3/8” [314] Length

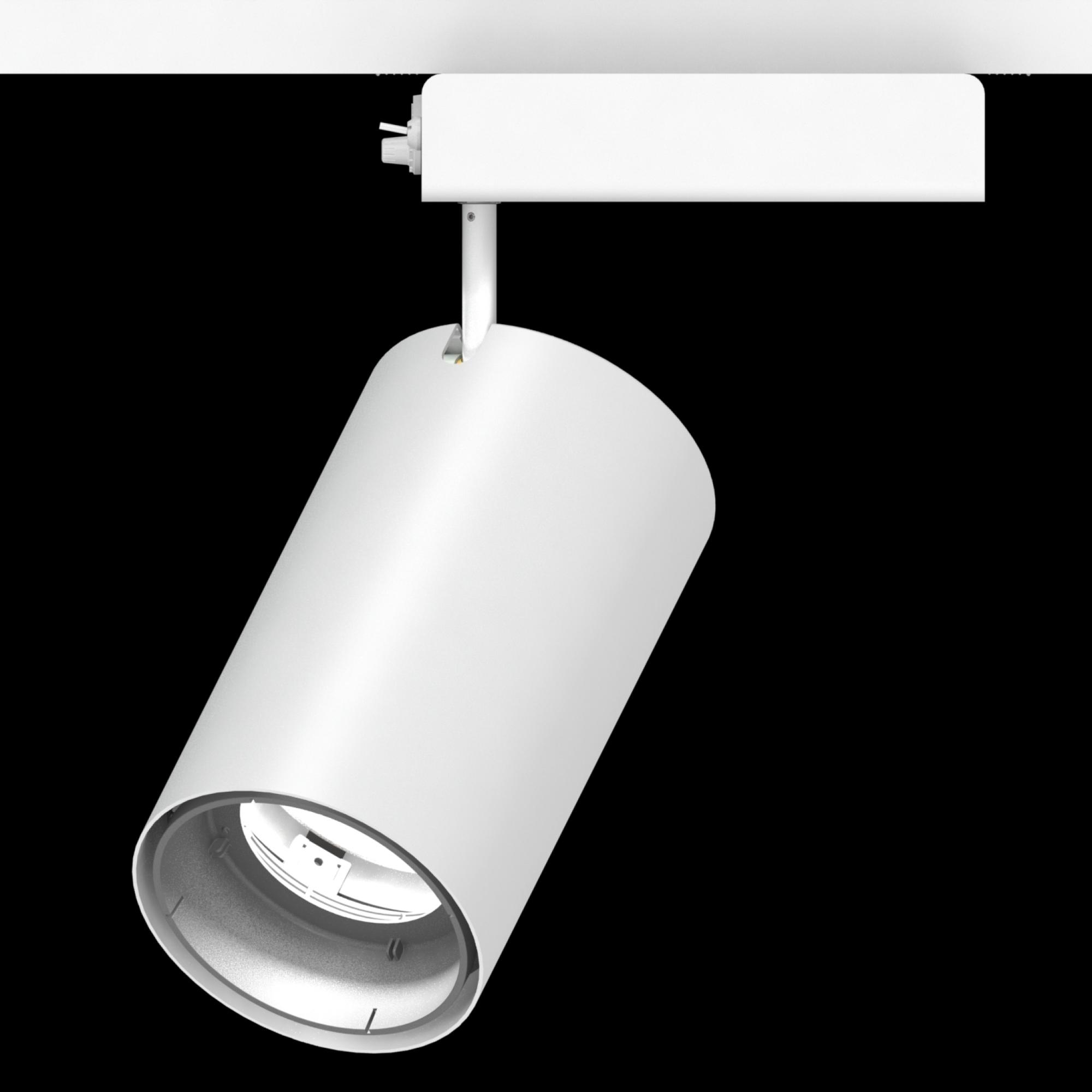

C5O-DW – Dim-to-Warm Object
Max. 4000 Lumens
90+CRI
12°, 20°, 40° Fixed Optic
5-1/2” [140] Dia. x 12-3/8” [314] Length
C5O-TW – Tunable White Object
Max. 3500 Lumens
90+CRI
12°, 20°, 40° Fixed Optic
5-1/2” [140] Dia. x 12-3/8” [314] Length
C5O-X [M55] – Xicato Object
Max. 3000 Lumens
95+CRI
20°, 40°, 60° Fixed Optic
5-1/2” [140] Dia. x 12-9/16” [247] Length
C5O [M67] – PAR38 Object
PAR-38 LED Replacement Lamp
30 Watt Max.
5-1/2” [140] Dia. x 11” [249] Length

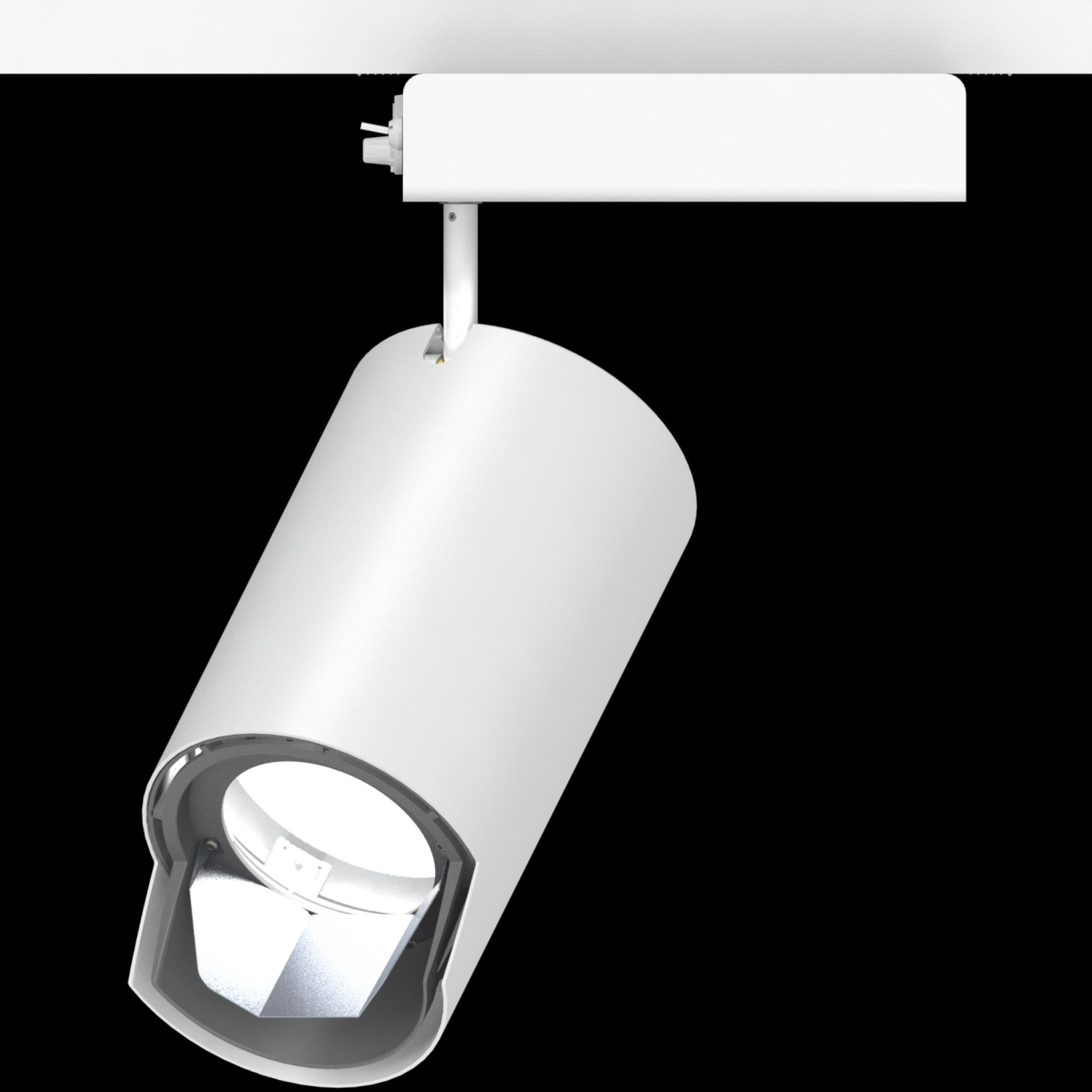

C5W-SW [M98] – Static White Wallwash
Max. 6000 Lumens
90+CRI
Wallwash
5-1/2” [140] Dia. x 14-3/16” [361] Length
C5W-DW – Dim-to-Warm Wallwash
Max. 4000 Lumens
90+CRI
Wallwash
5-1/2” [140] Dia. x 14-3/16” [361] Length
C5W-TW – Tunable White Wallwash
Max. 3500 Lumens
90+CRI
Wallwash
5-1/2” [140] Dia. x 14-3/16” [361] Length
C5W-X [M56] – Xicato Wallwash
Max. 3000 Lumens
95+CRI
Wallwash
5-1/2” [140] Dia. x 12-3/8” [322] Length

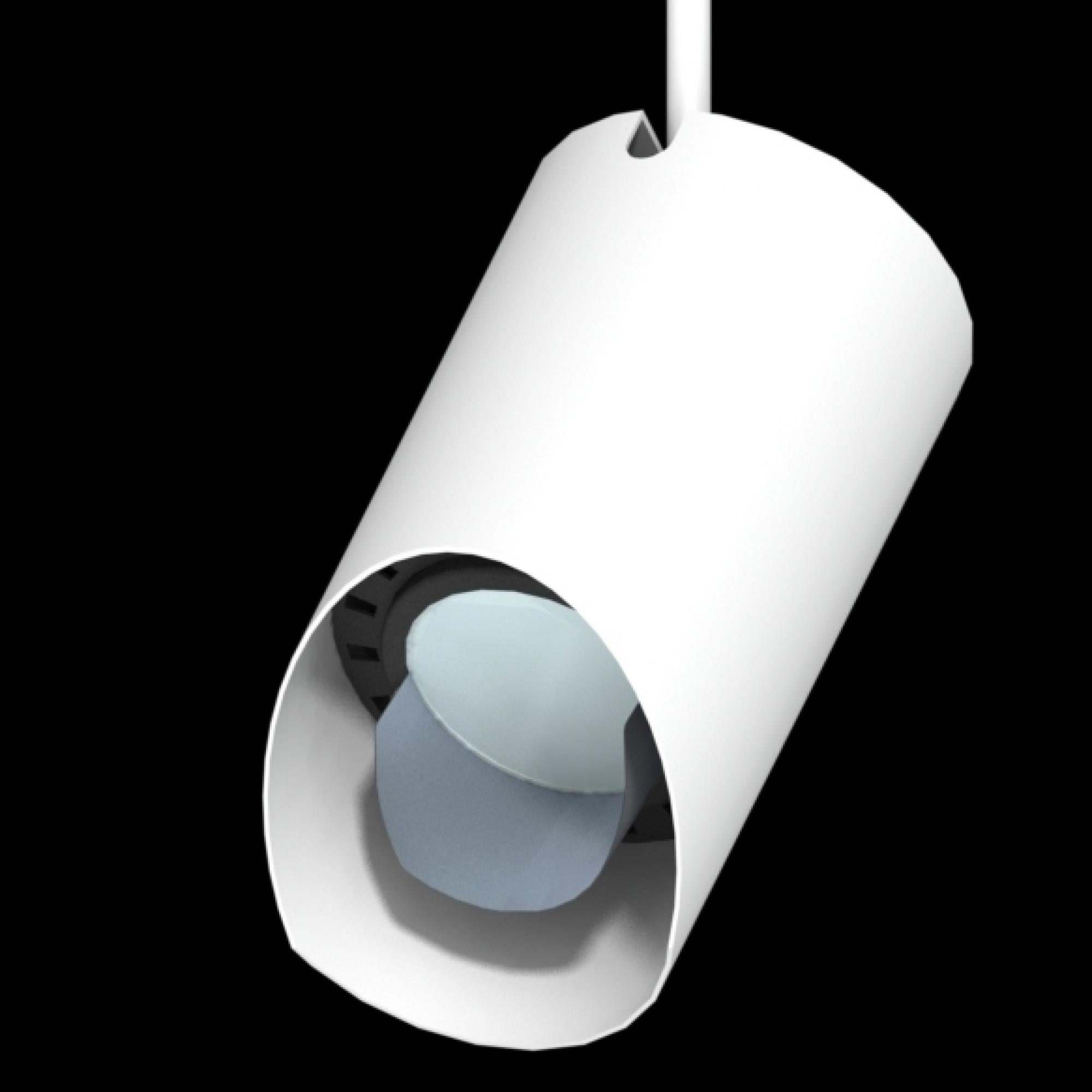

C5W [M68] – PAR38 Wallwash
PAR-38 LED Replacement Lamp
30 Watt Max.
5-1/2” [140] Dia. x 11-7/8” [302] Length
