C2W-TW [C82] – Tunable White Wallwash
Max. 1000 Lumens
90+ CRI
1800 – 4000K CCT
2700 – 6500K CCT
1:1 Wallwash
2-3/8” [60] Dia. x 6-13/16” [173] Length
C2W [M62] – MR16 Wallwash
MR-16 Halogen / LED Replacement Lamp
50 Watt Max. (Halogen)
15 Watt Max. (LED Replacement Lamp)
2-3/8” [60] Dia. x 6-13/16” [174] Length
C2S [C85] – Very Narrow Spot
Max. 700 Lumens
90+CRI
6° Spot
2-3/8” [60] Dia. x 6-13/16” [173] Length

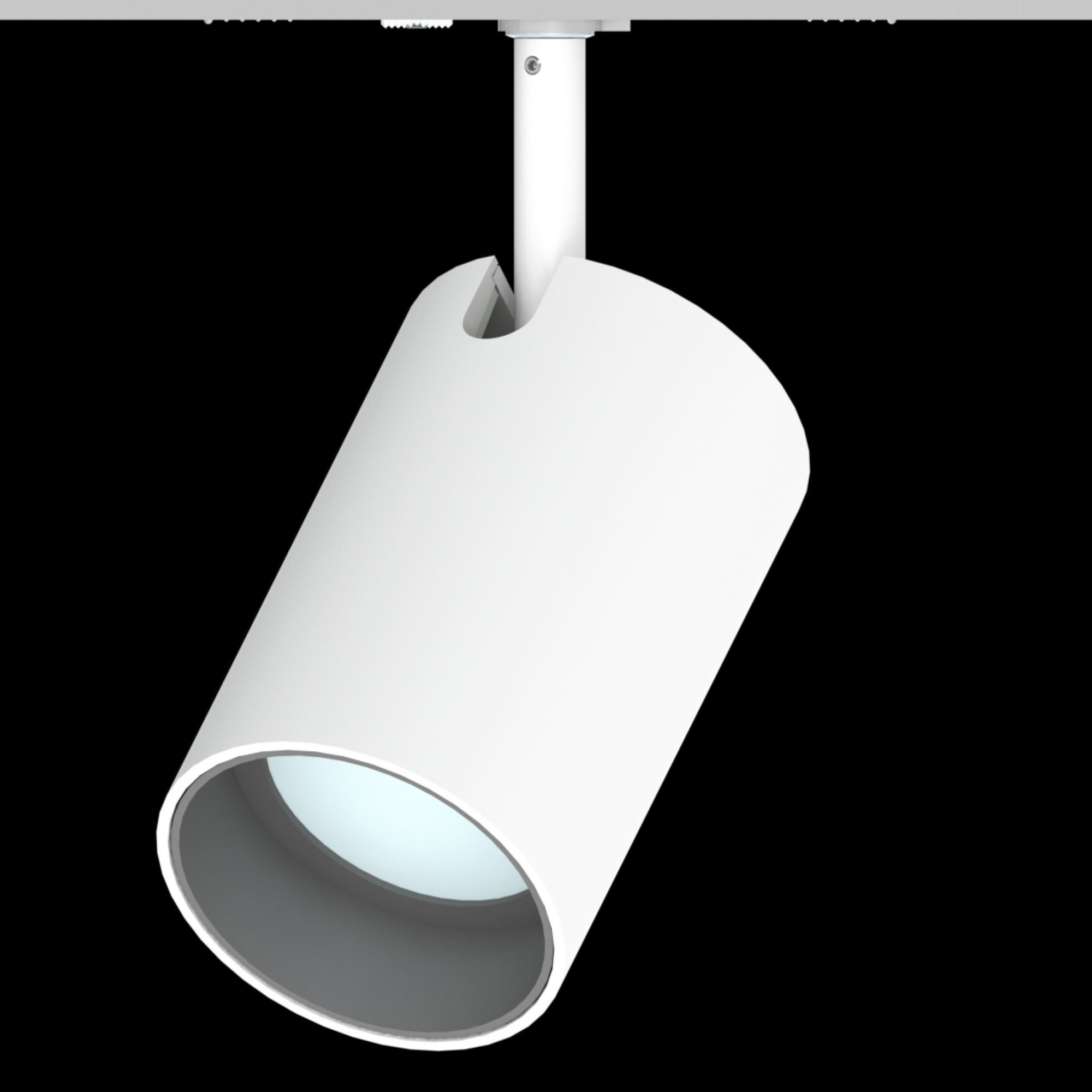

C3Z [C71] – Zoom
Max. 1800 Lumens
90+CRI
10 – 30 Zoom Optic
3-1/16” [78] Dia. x 7” [178] Length
C3O-SW [C73] – Static White Object
Max. 1800 Lumens
90+CRI
10°, 22°, 32° Fixed Optic
3-1/16” [78] Dia. x 7” [178] Length
C3O-SW [C73] – High Output Static White Object
Max. 3200 Lumens
90+CRI
20°, 25°, 35°, 45° Fixed Optic
3-1/16” [78] Dia. x 7” [178] Length

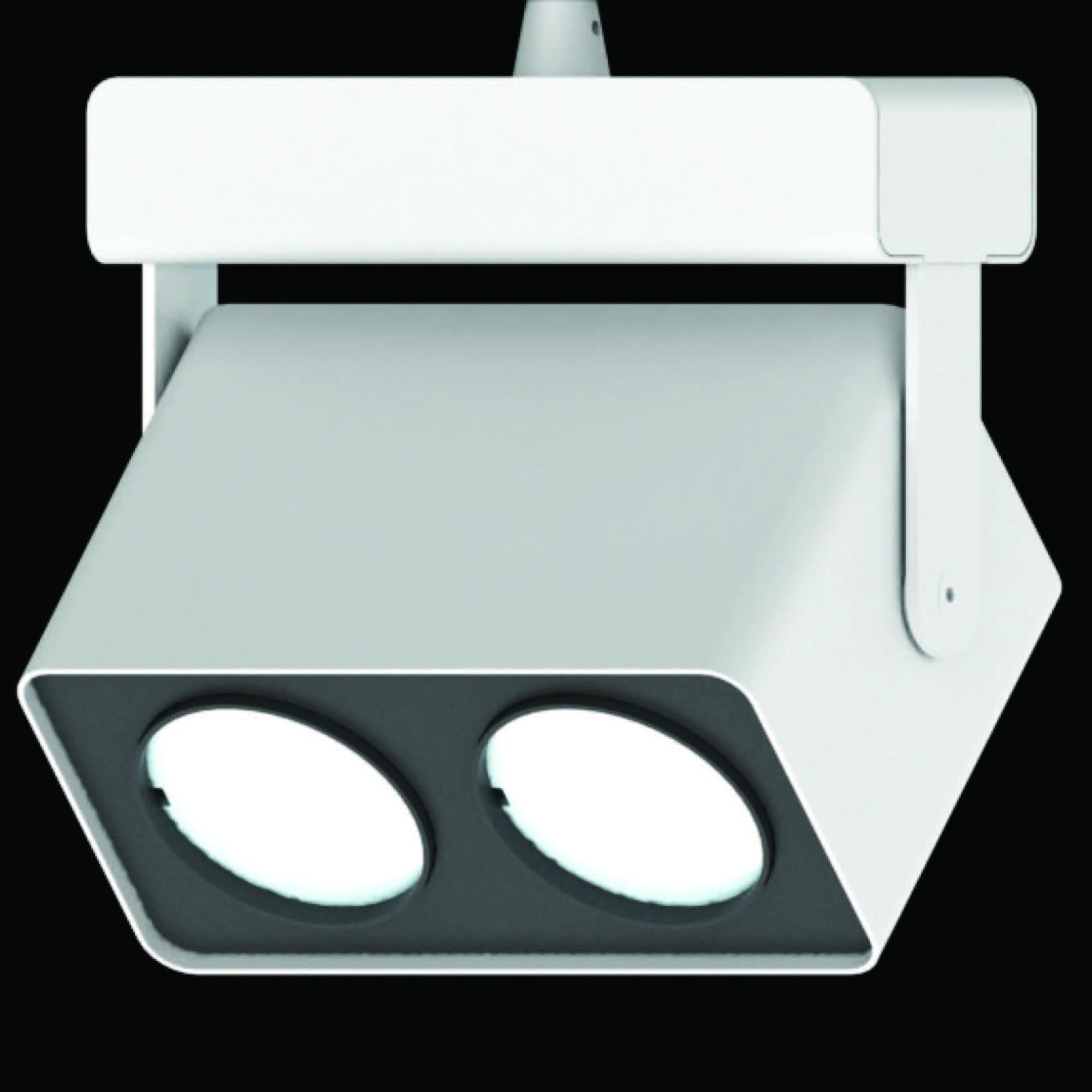

R2O-SW – High Output Static White Object
Max. 6000 Lumens
90+CRI
20°, 25°, 35° Fixed Optic
7-5/8” [193] W x 4-5/8” [118] L

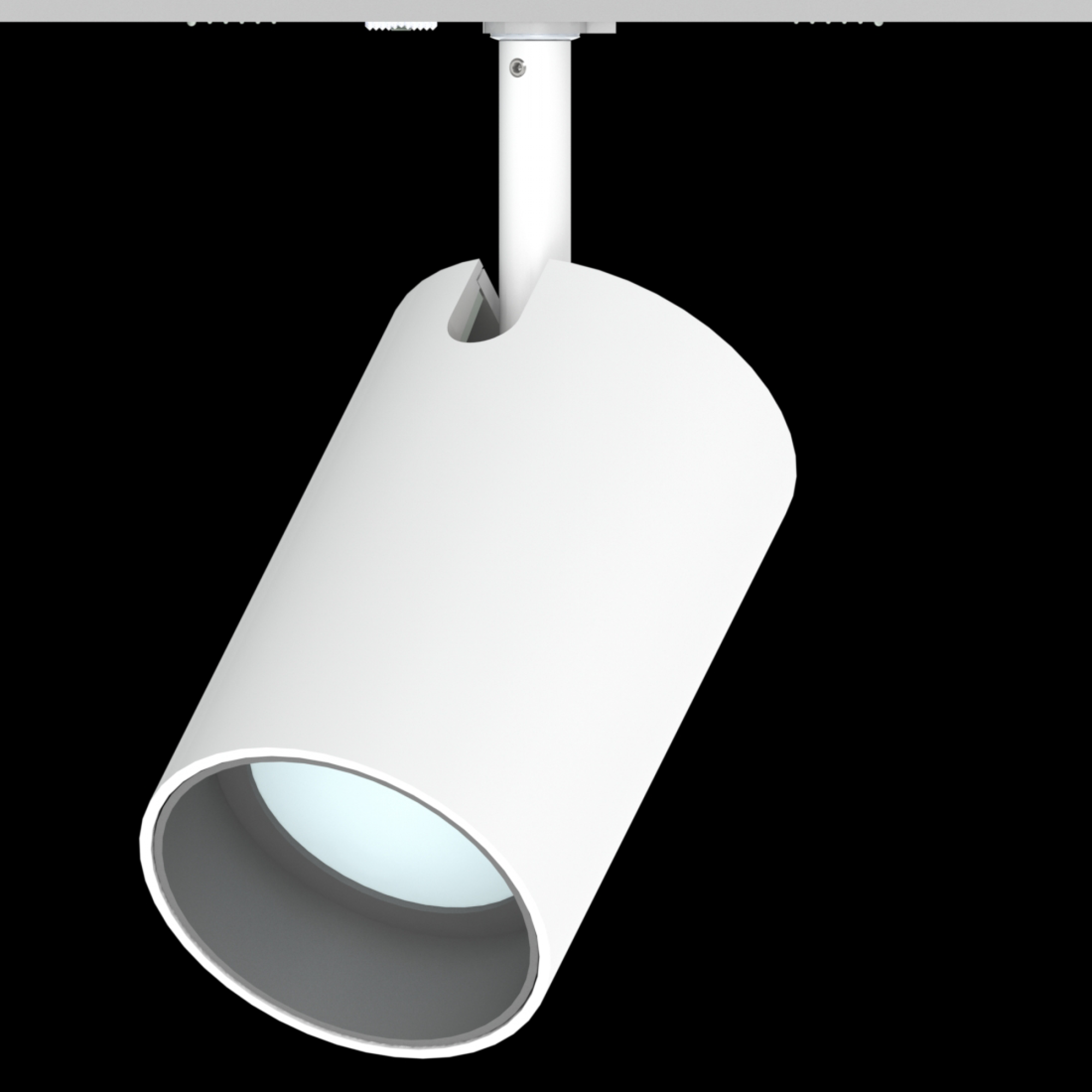

C3O-DW [C73] – Dim-to-Warm Object
Max. 1000 Lumens
90+ CRI
1800 – 2700K CCT
1800 – 3000K CCT
15°, 25°, 35° Fixed Optic
3-1/16” [78] Dia. x 7” [178] Length
C3O-HO-DW [C73] – High Output Dim-to-Warm Object
Max. 2000 Lumens
90+ CRI
1800 – 2700K CCT
1800 – 3000K CCT
20°, 25°, 35°, 45° Fixed Optic
3-1/16” [78] Dia. x 7” [178] Length
C3O-TW [C73] – Tunable White Object
Max. 1000 Lumens
90+ CRI
1800 – 4000K CCT
2700 – 6500K CCT
15°, 25°, 35° Fixed Optic
3-1/16” [78] Dia. x 7” [178] Length
C3O-HO-TW [C73] – High Output Tunable White Object
Max. 1900 Lumens
92+ CRI
1800 – 4000K CCT
2700 – 6500K CCT
15°, 25°, 35° Fixed Optic
3-1/16” [78] Dia. x 7” [178] Length
C3O-X [X03] – Xicato Object
Max. 2000 Lumens
Max. 98 CRI
20°, 40°, 60° Fixed Optic
3-1/16” [78] Dia. x 7” [178] Length
C3W-SW [C72] – Static White Wallwash
Max. 1800 Lumens
90+CRI
Wallwash
3-1/16” [78] Dia. x 7-5/8” [194] Length
C3W-SW [C72] – High Output Static White Wallwash
Max. 3200 Lumens
90+CRI
Wallwash
3-1/16” [78] Dia. x 7-5/8” [194] Length
R2W-SW – High Output Static White Wallwasher
Max. 6000 Lumens
90+CRI
Wallwash Luminaire
7-5/8” [193] W x 6-5/8” [167] L
