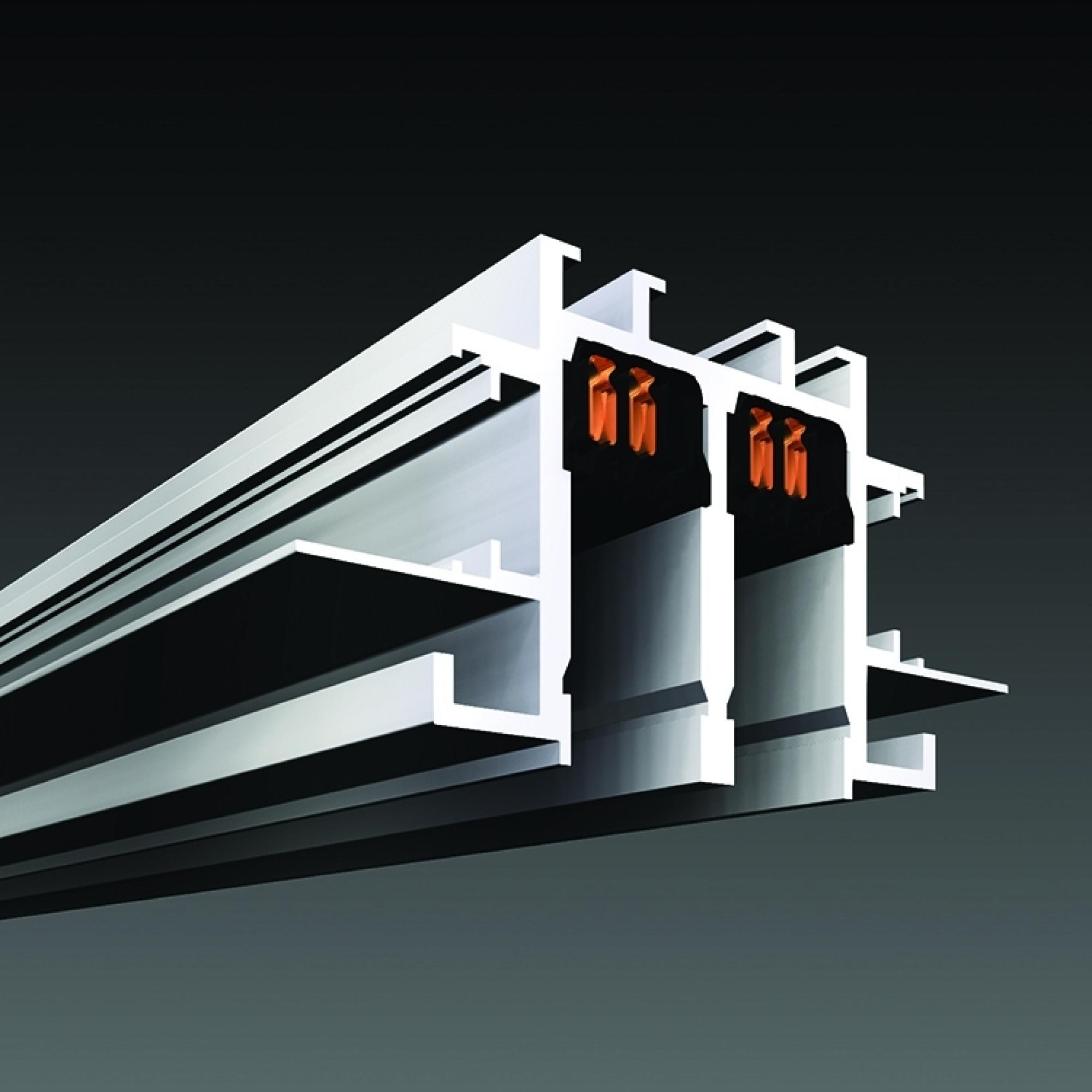

BUS37's double channel unistrut profile provides added flexibility, carrying up to 100 lbs between hang points. It can be Surface Mounted or Hung. Like all BusRun, it falls under Article 368 of the NEC, providing it with distinct advantages over track. It is available in 4-circuit, and up to 60 Amps.
Specifications
120, 240 and 277 Volts
2-4 Circuits (120/240 V)
2 Circuits 277 Volts
16, 20, 30 and 60 Amps
Dimensions
3-1/8” W x 2-7/16″ H
79mm W x 61mm H
Mounting
Hanging (Pendant or Cable)
Finish
White, Black, Brushed Aluminum, or Custom
Loading
Max. 100 lb [45.4kg] between support points
Integral Strut Channel Hanging System
